Pulse Voltage Stabilizer

Name: Pulse Voltage Stabilizer
Brand: AMD Techlab

♻

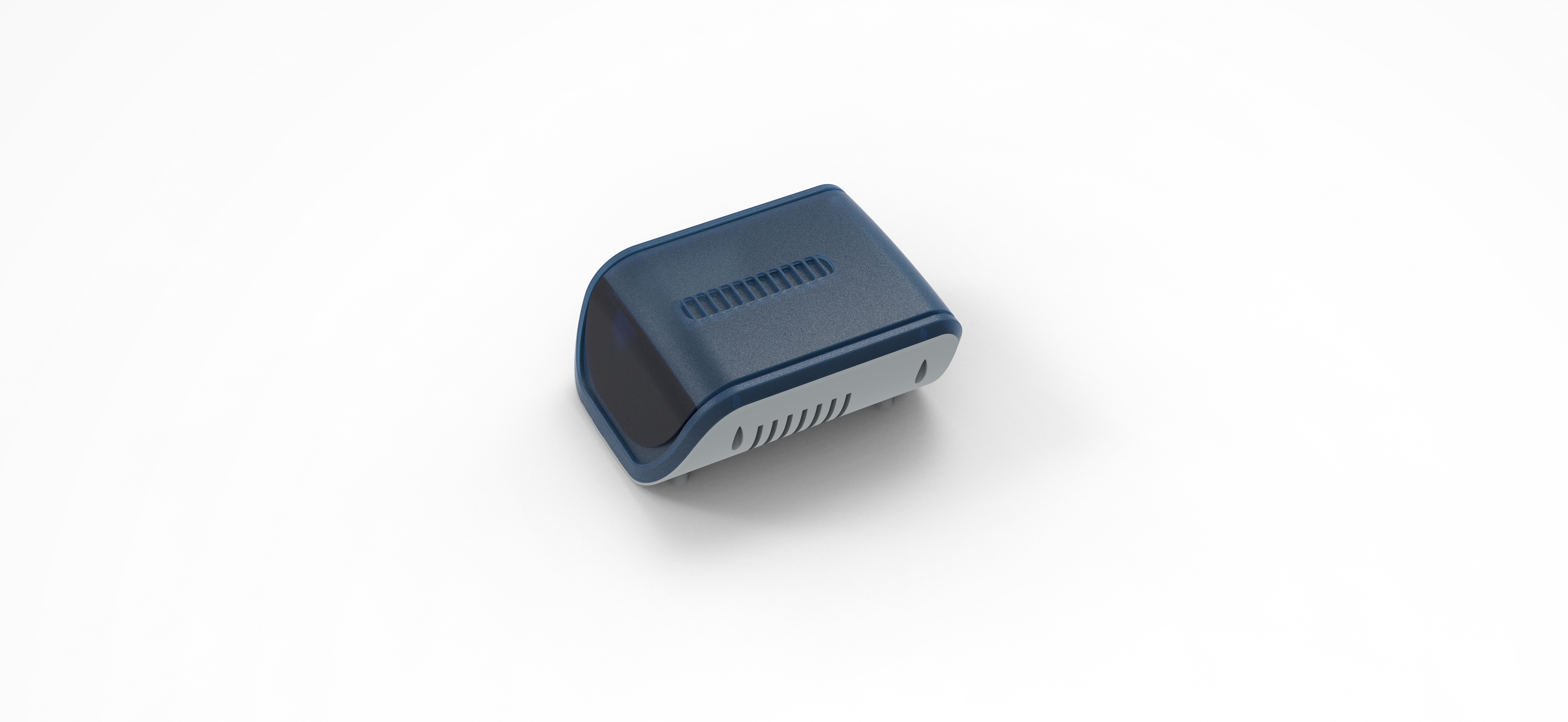

Compact Manufacturing-Ready Enclosure

The enclosure was engineered for high-volume injection moulding using controlled draft angles, optimized wall thickness, clean shut-offs, and simplified tooling. Every exterior surface was designed to reduce manufacturing complexity while maintaining premium visual quality.

⏱

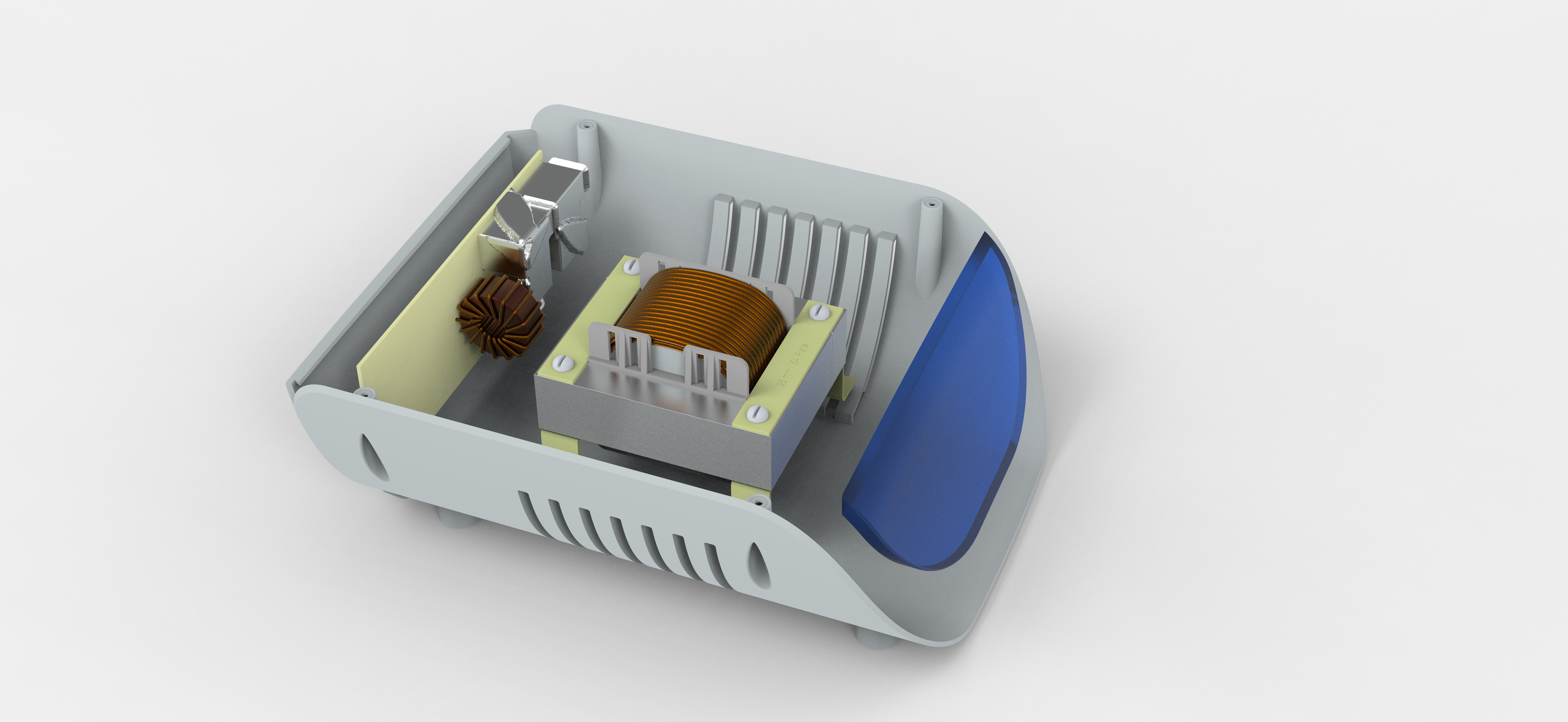

Efficient Internal Packaging

Internal architecture was carefully planned around the transformer, PCB, heat sink, wiring, and electrical components to maximize usable volume while maintaining adequate clearances for cooling, assembly, and servicing.

◎

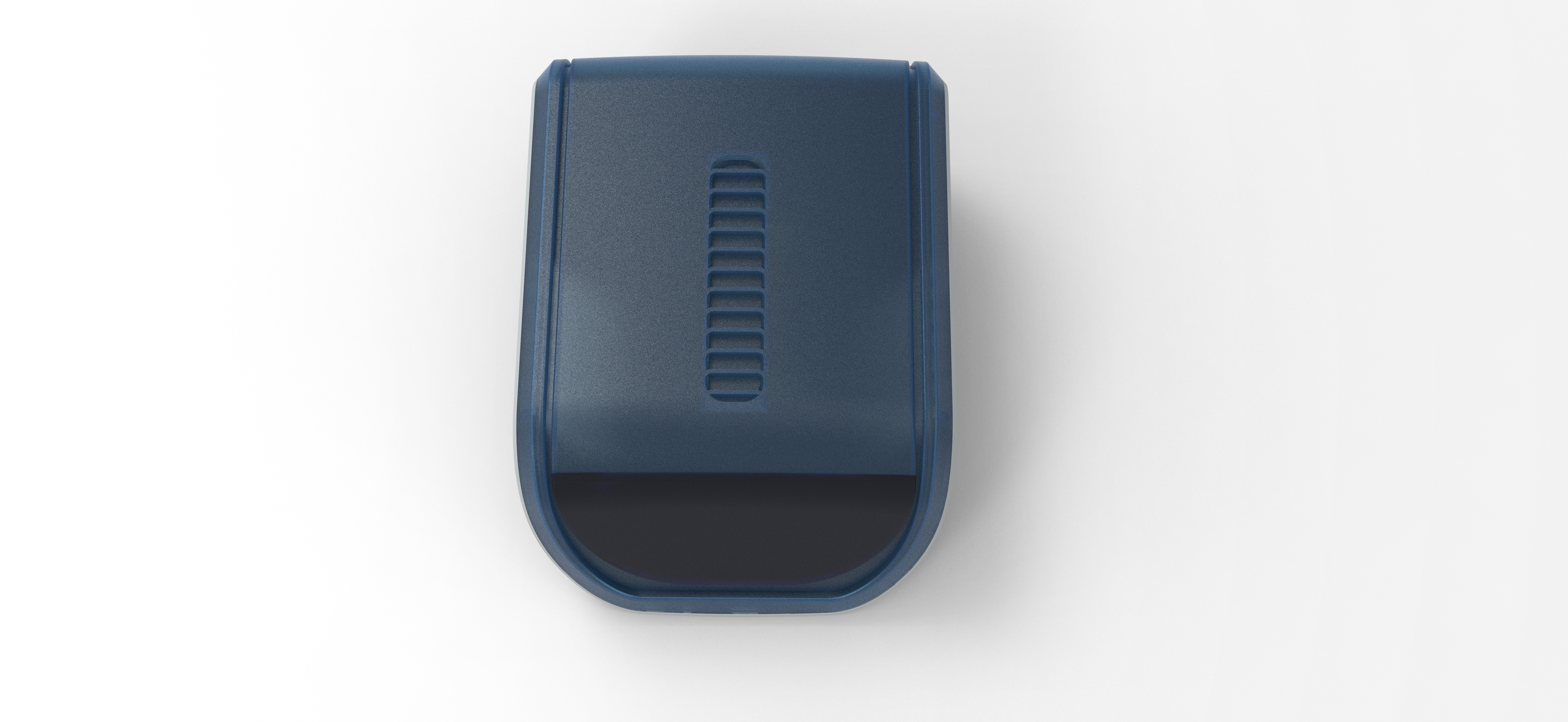

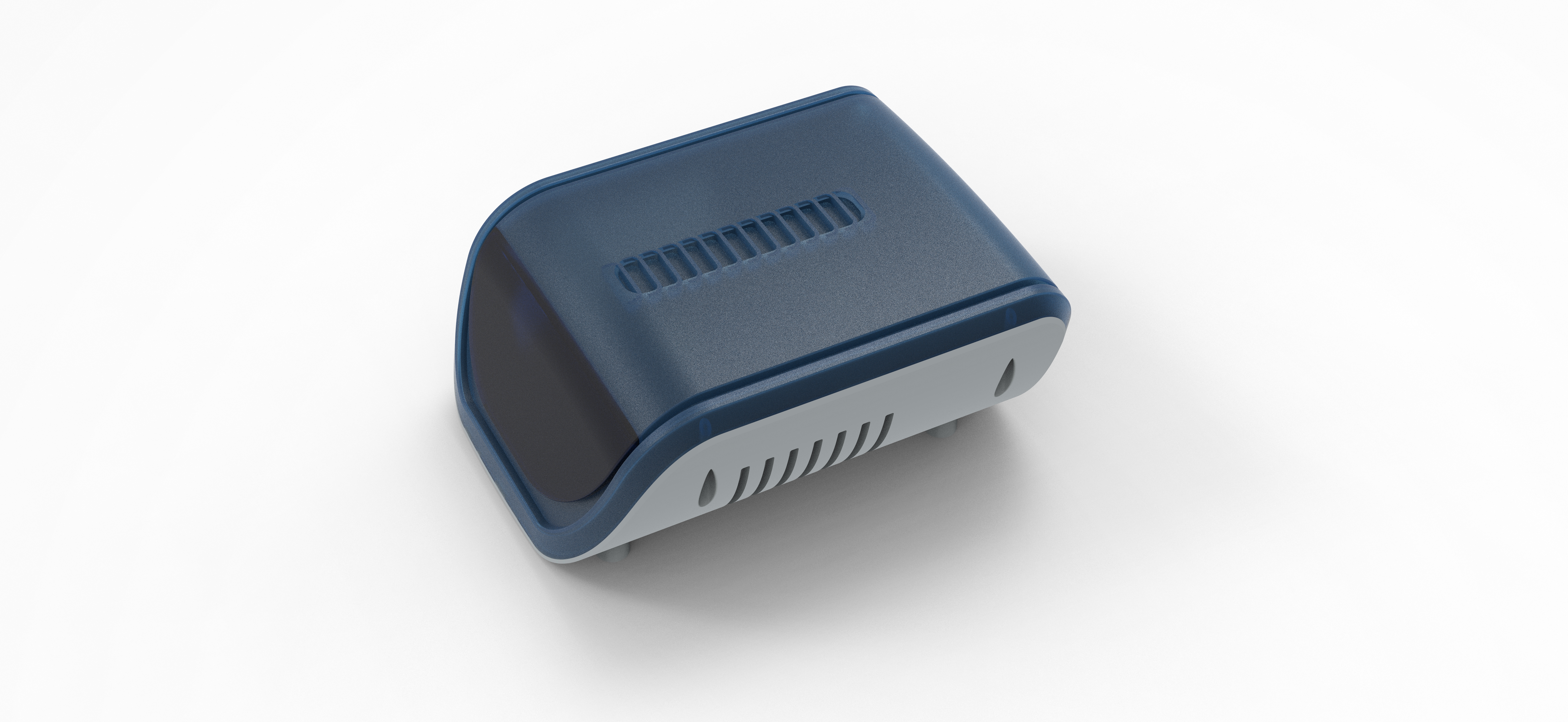

Integrated Thermal Management

Ventilation openings were strategically positioned to promote natural airflow around heat-generating components. Cooling performance and enclosure aesthetics were balanced without relying on excessive or visually distracting vent patterns.

◆

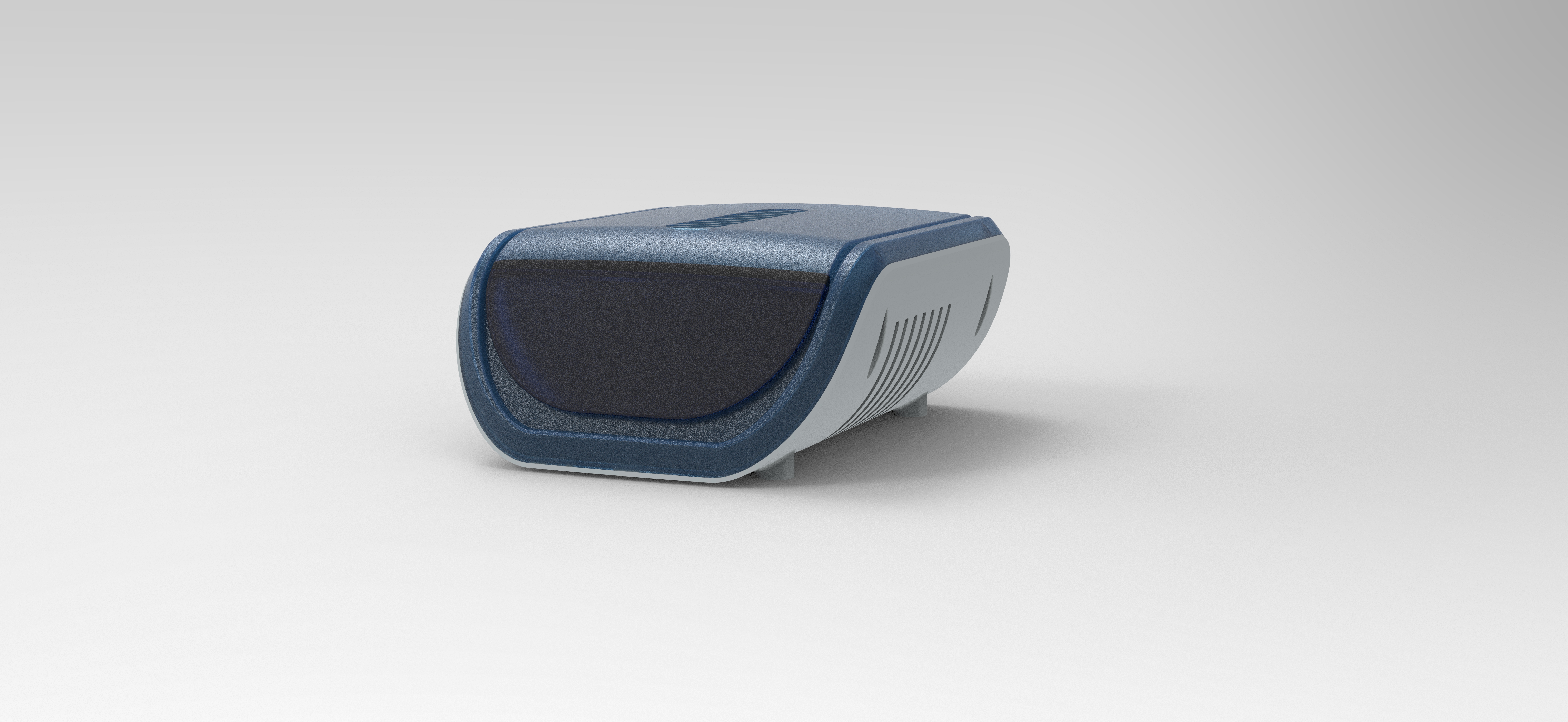

Premium Consumer Electronics Styling

The stabilizer adopts a modern monolithic form with a seamless smoked front display and soft flowing transitions, giving the product a premium appliance appearance rather than the traditional industrial look common in the market.

◆

Production-Oriented Engineering

Every structural feature, mounting point, enclosure split, and assembly interface was developed with manufacturing efficiency and long-term reliability in mind, enabling repeatable production and simplified product assembly.

Voltage StabilizerIndustrial DesignDFMInjection MouldingConsumer Electronics

Start a Project Like This →

The engineering behind it.

The objective was to create a voltage stabilizer that feels like a premium smart appliance rather than a conventional electrical accessory. The design emphasizes clean geometry, minimal visual clutter, and a strong front display that immediately communicates product quality.

A smoked front display integrates naturally into the enclosure while the surrounding body maintains smooth transitions that are well suited for injection moulding. Ventilation features were incorporated as functional design elements instead of appearing as purely mechanical openings, helping achieve both thermal performance and refined aesthetics.

The internal layout was engineered around real electronic components including the transformer, PCB, heat sink, and associated electrical hardware. Component placement was optimized to improve airflow, simplify assembly, and maintain efficient use of enclosure volume without compromising manufacturability.

Developed using Design for Manufacturing (DFM) principles, the enclosure is production-ready with optimized tooling strategy, simplified assembly architecture, and a premium industrial design language suitable for large-scale consumer electronics manufacturing.

Draft Angle Analysis

Every face verified for clean ejection.

Parting Line Optimisation

Positioned to minimise slider actions and tooling cost.

Wall Thickness Mapping

Uniform walls for consistent fill and no sink marks.

Ejection & Cooling Layout

Ejector and cooling-channel strategy defined for the toolroom.
