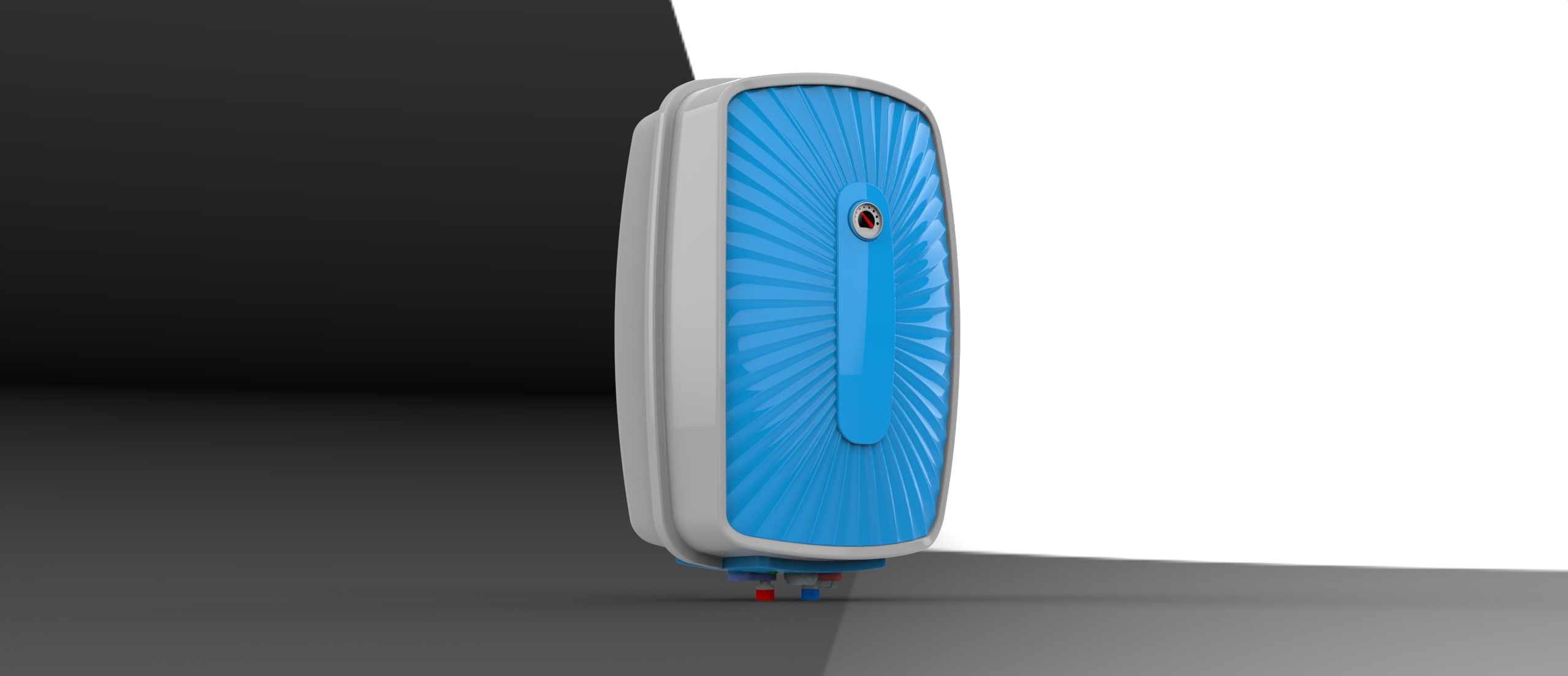

View 2Render

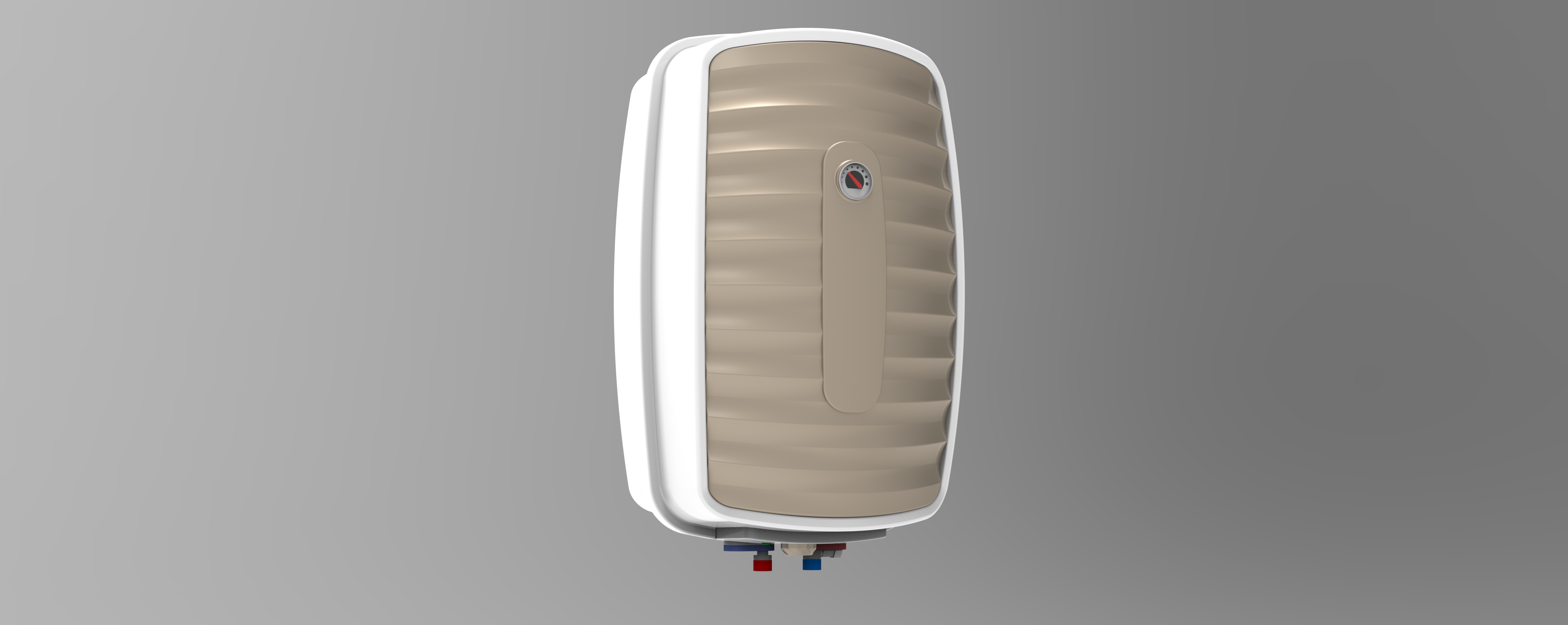

View 3Render

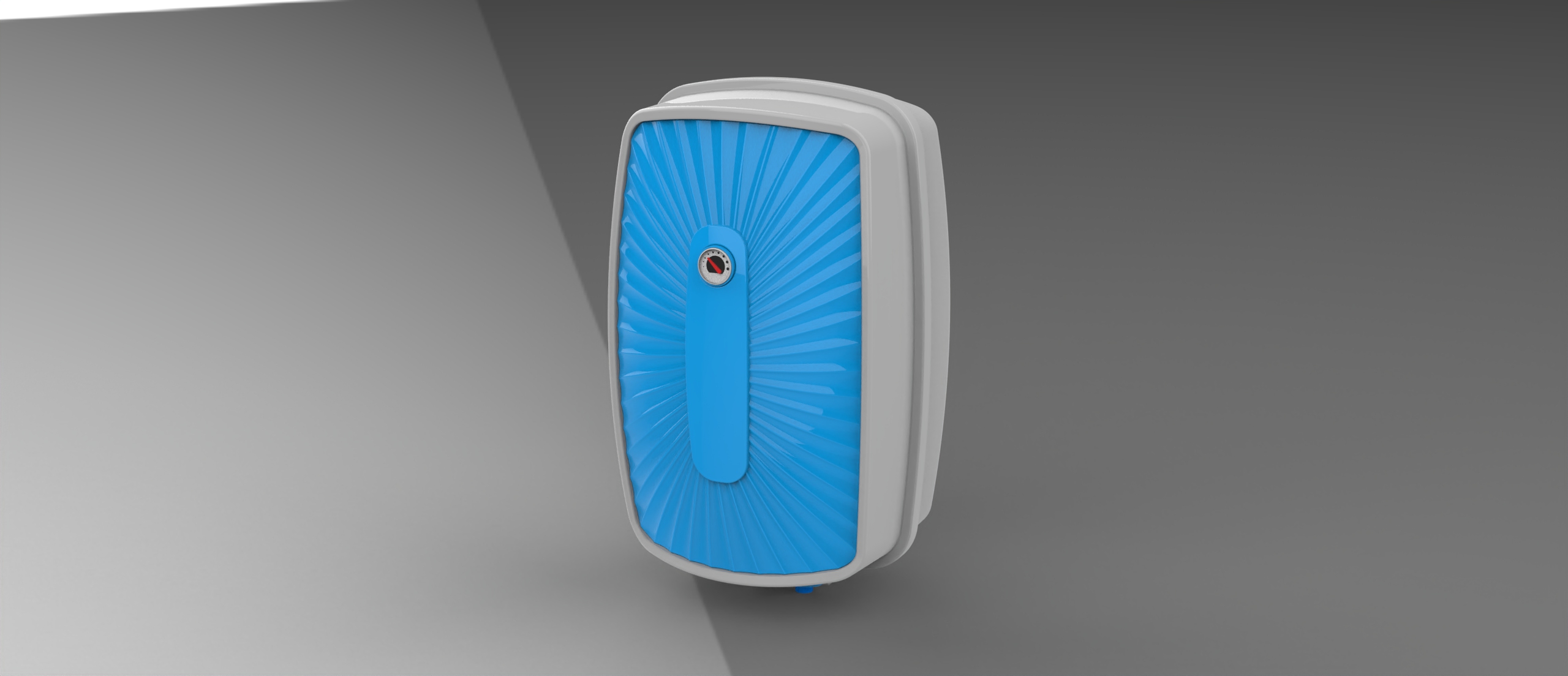

View 4Render
Water Heaters

Strata Series Water Heater

♻
Complete Product Development
Complete industrial design, engineering, manufacturing-ready CAD, and production support from concept to manufacturing.
⏱
Premium Front Panel Design
Sculpted horizontal contours create a refined appearance, improve product identity, and increase premium shelf appeal.
◎
User-Focused Interface
Indicator placement and front fascia were integrated into the enclosure for a clean, intuitive, and modern user experience.
◆
DFM Optimized
Wall thickness, draft angles, ribs, and tooling strategy were engineered for reliable plastic injection moulding.
◆
Production-Ready Engineering
Delivered complete CAD, STEP files, injection mould engineering, and production documentation for commercial manufacturing.
Water Heater DesignIndustrial DesignInjection Mould DesignManufacturing Ready CADDFMHome Appliance
Start a Project Like This →

The engineering behind it.

The objective was to create a premium storage water heater that stands apart from conventional flat-front appliances while remaining economical to manufacture. The front fascia uses layered horizontal contours that improve visual depth without introducing unnecessary tooling complexity.

The enclosure was developed around injection moulding principles with controlled draft angles, uniform wall thickness, smooth transitions, and practical split lines. The recessed centre strip provides a clean location for branding, temperature indication, or a digital interface while simplifying future product variations.

Special attention was given to assembly, manufacturability, and serviceability. The result is a contemporary water heater concept that combines refined aesthetics with production-ready engineering suitable for consumer appliance manufacturing.

01
Draft Angle Analysis
Every face verified for clean ejection.
02
Parting Line Optimisation
Positioned to minimise slider actions and tooling cost.
03
Wall Thickness Mapping
Uniform walls for consistent fill and no sink marks.
04
Ejection & Cooling Layout
Ejector and cooling-channel strategy defined for the toolroom.
