RenderAir Coolers
Air Cooler Redesign Using Existing Water Tank
♻
Reusable Tank Platform Engineering
The existing water tank mould was retained while completely redesigning the upper cabinet, allowing multiple fresh product variants without investing in an entirely new tooling platform.
⏱
Reduced Tooling Investment
By preserving the customer's existing mould investment, the project substantially reduced development costs while accelerating the introduction of new products into the market.
◎
Multiple Product Variants from One Platform

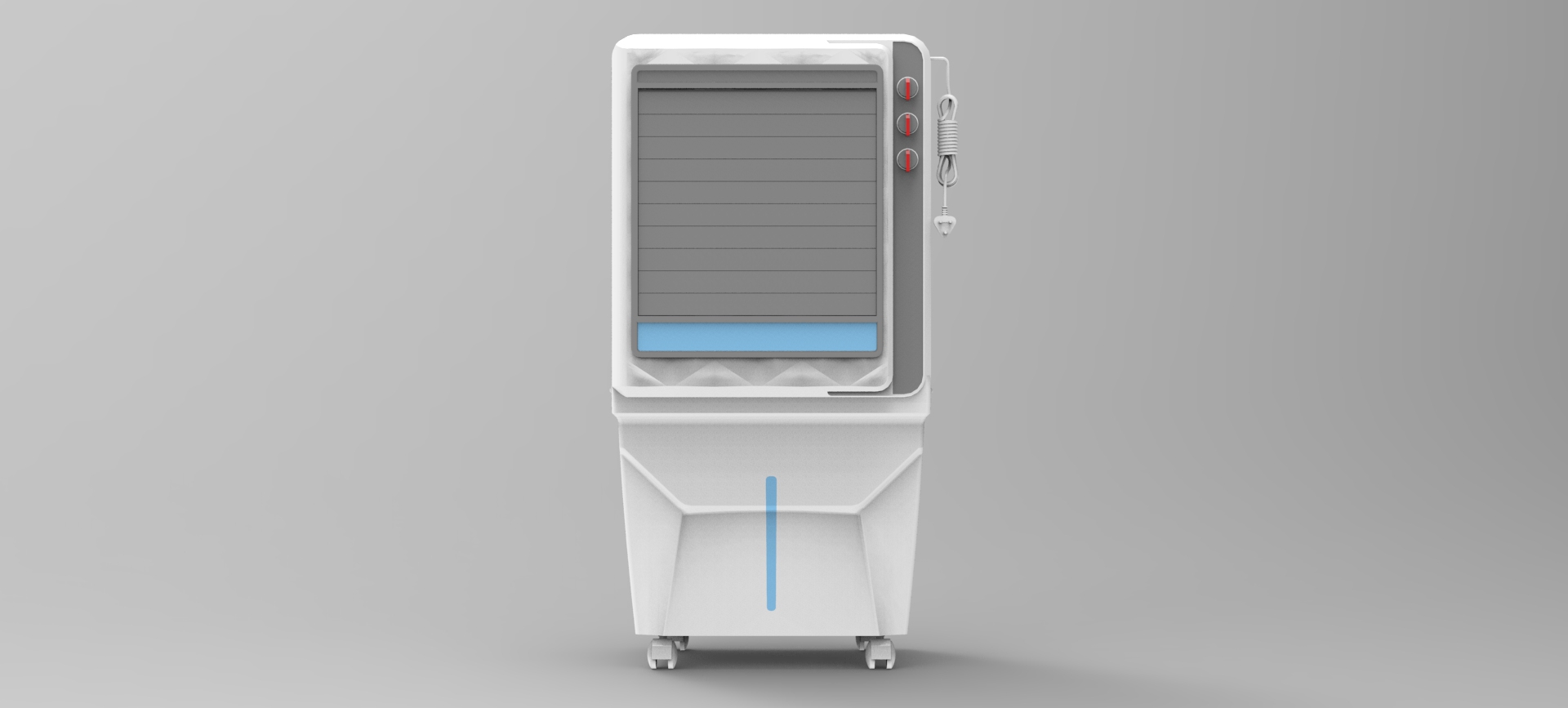

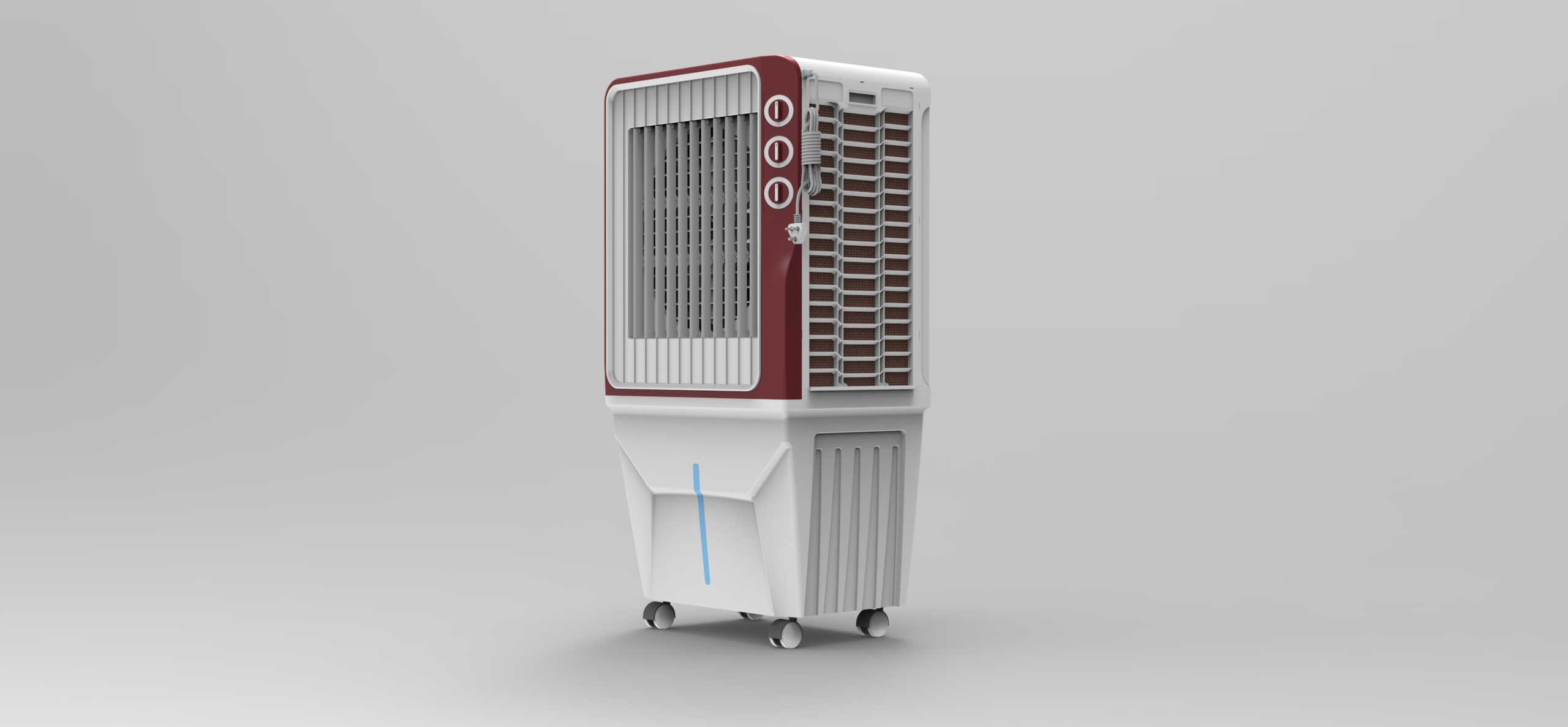

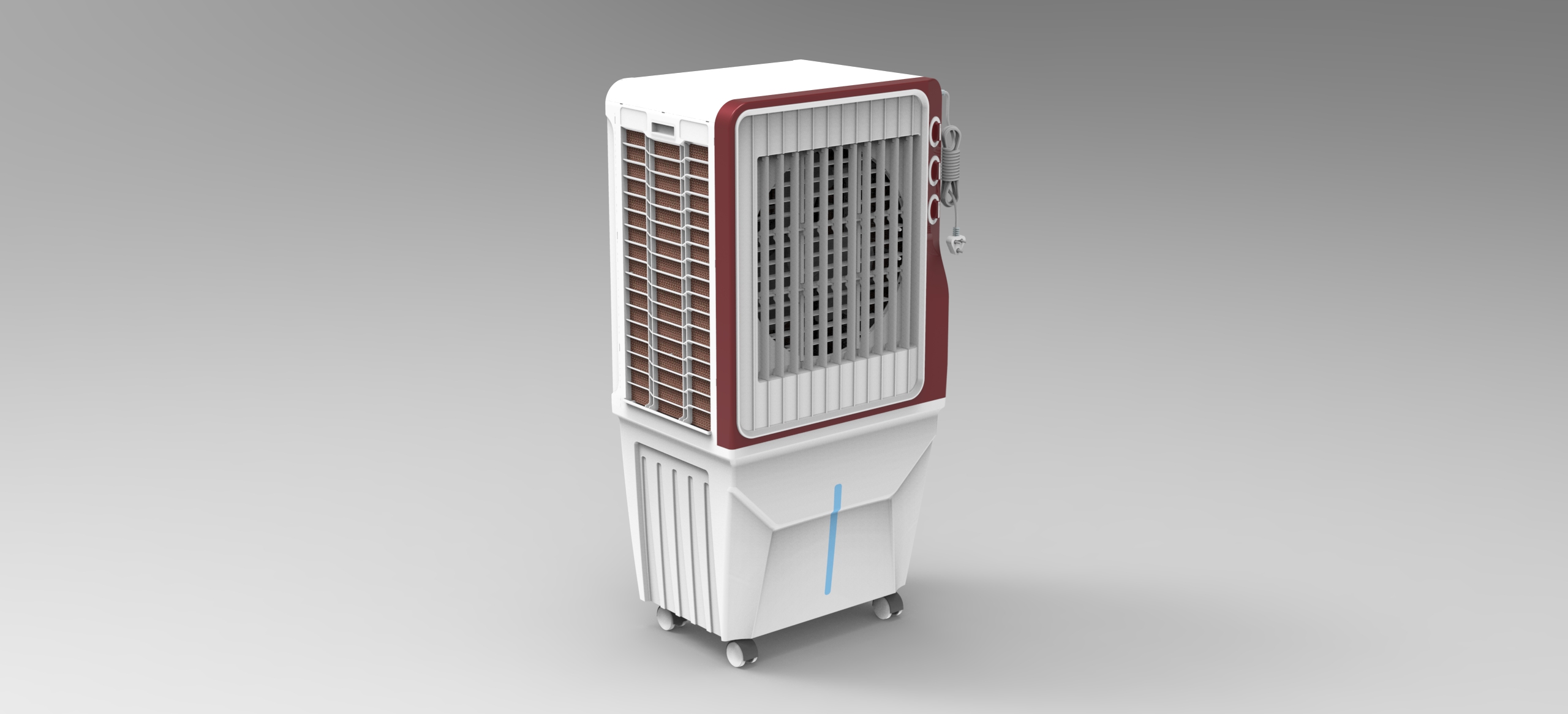

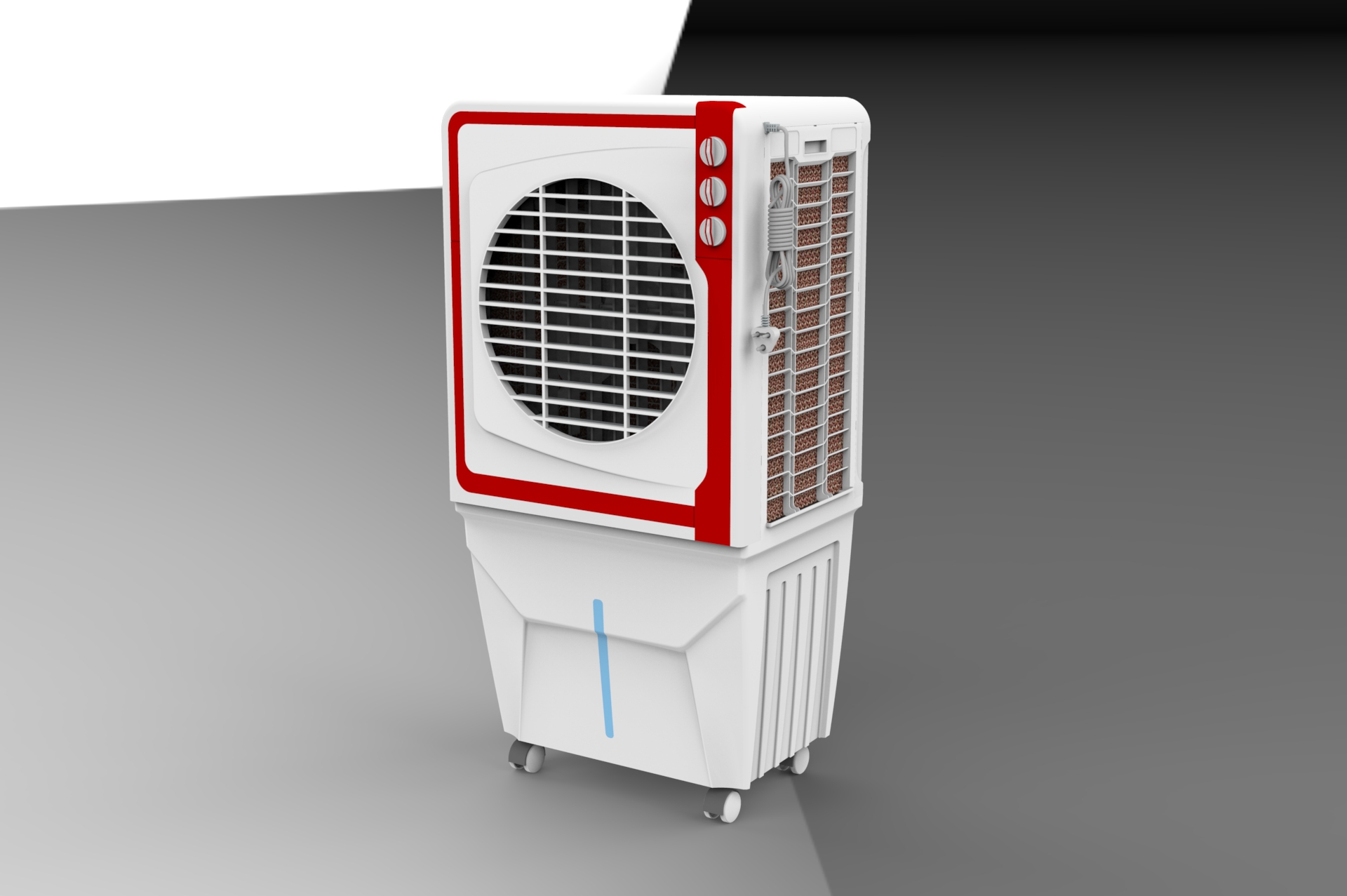

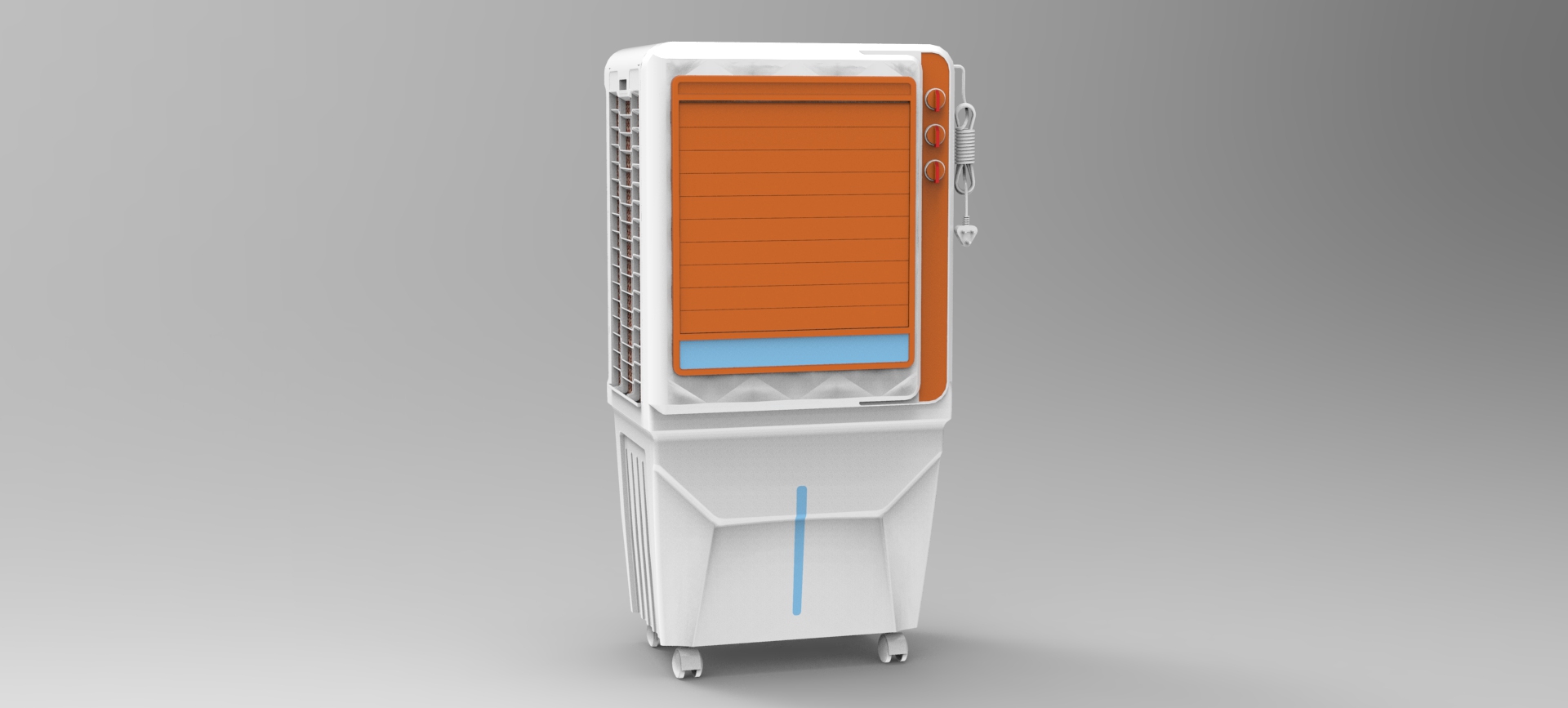

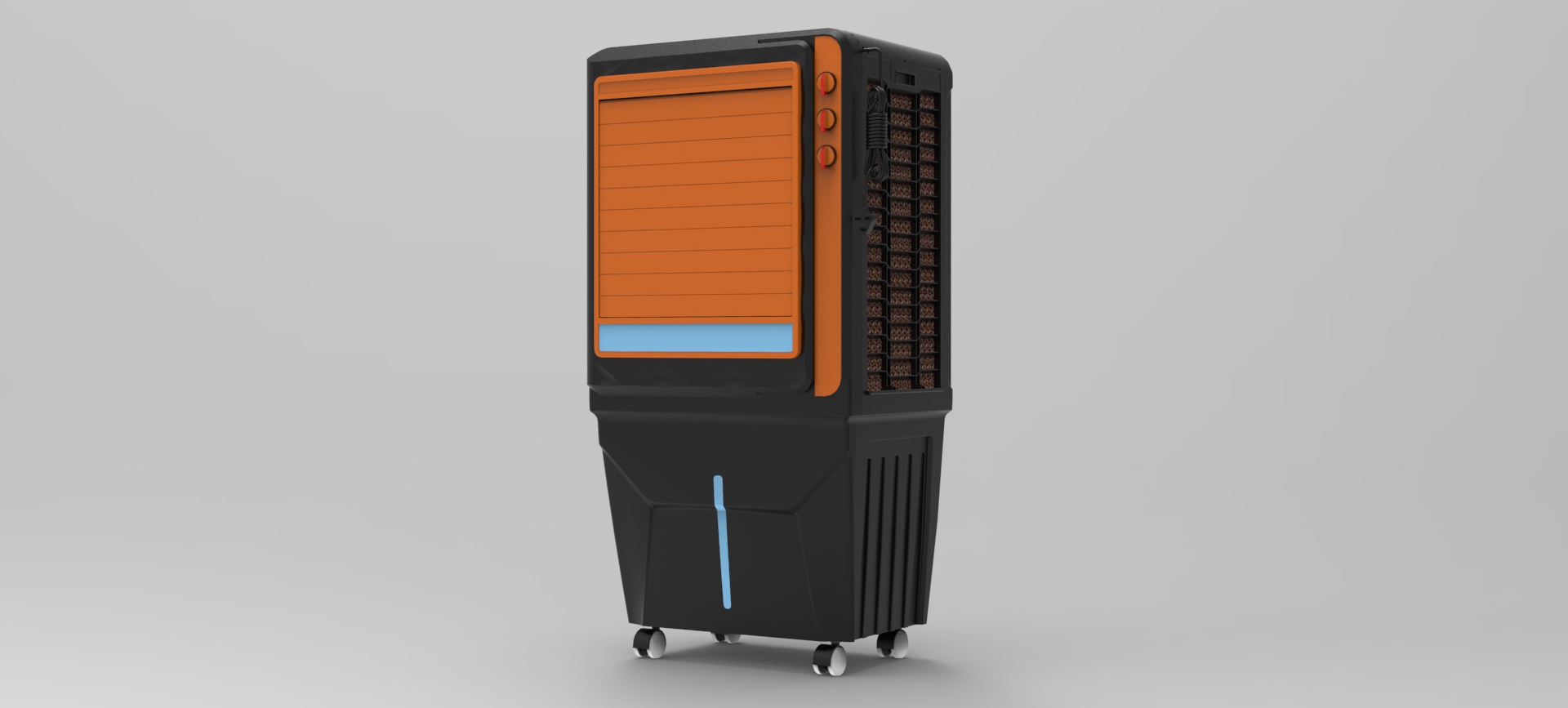

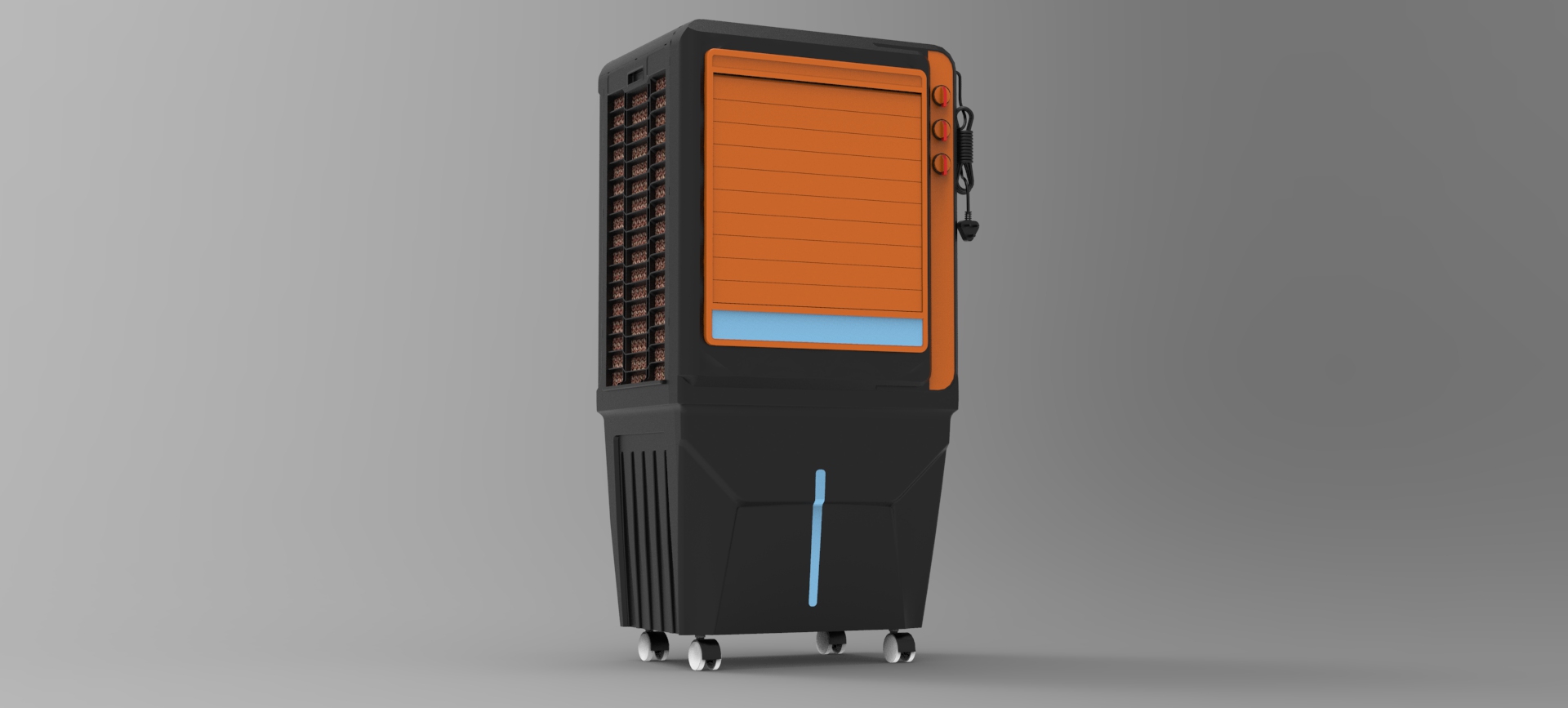

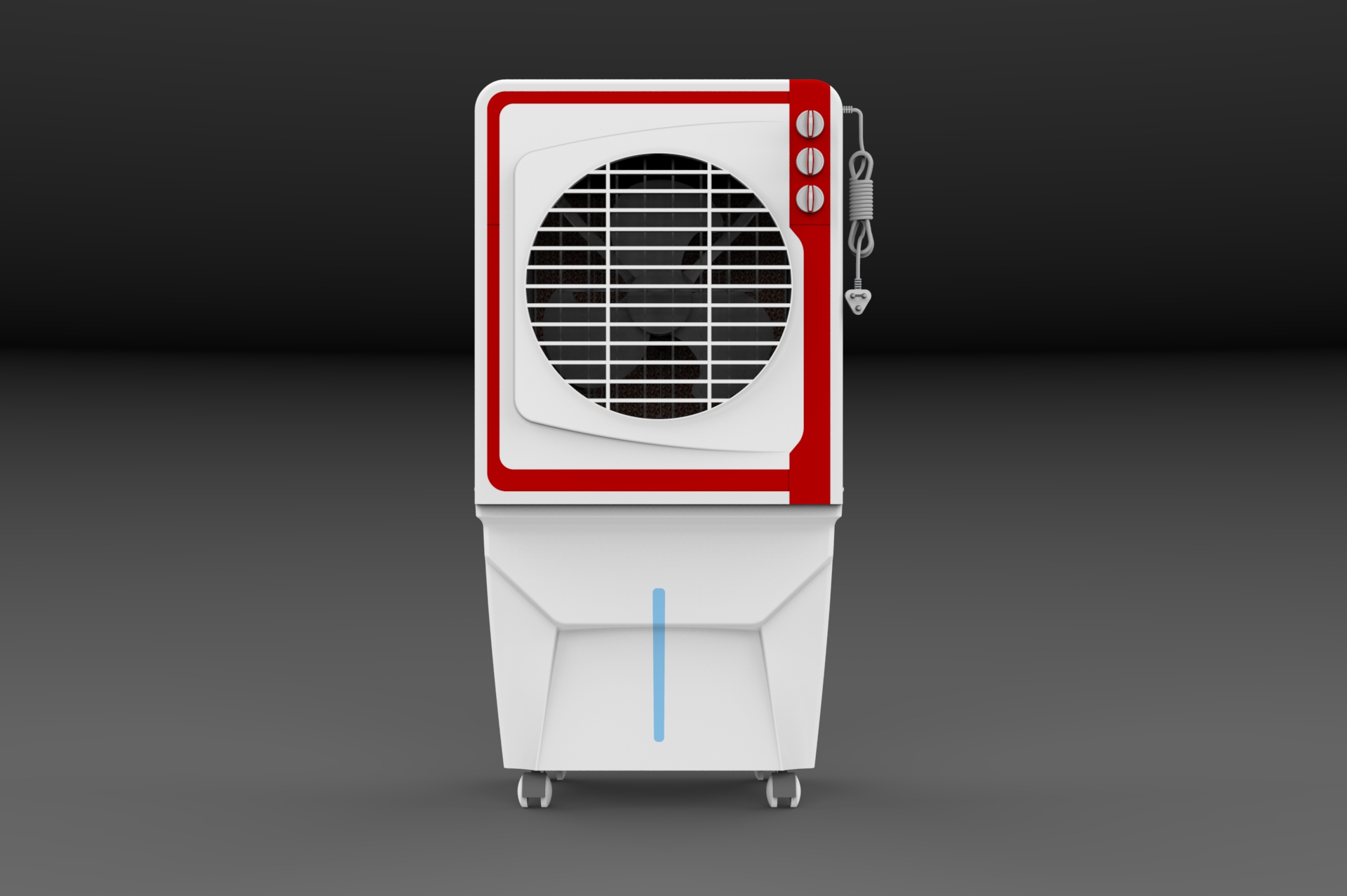

Three visually distinct cabinet designs were developed using the same lower tank architecture, enabling manufacturers to expand their product lineup while maintaining manufacturing consistency.
◆
Production-Oriented Plastic Engineering
Each upper cabinet was engineered using Design for Manufacturing (DFM) principles with production-friendly geometry suitable for plastic injection mould tooling and efficient assembly.
◆
OEM Platform Development Strategy
The modular architecture allows future styling updates and product refreshes while continuing to utilize the same base platform, extending tooling life and improving long-term manufacturing flexibility.
