Dual-Chamber Ice Cooling Air Cooler Design

The engineering behind it.

This air cooler was developed around the idea of improving cooling performance while creating a distinctive product design. Instead of relying only on a conventional water tank, the concept introduces a dedicated upper cooling chamber that is seamlessly integrated into the cabinet.

Water is pumped from the main reservoir into the insulated upper chamber, where users can place ice cubes or reusable cooling packs. As the water passes through this chamber, its temperature is reduced before circulating through the cooling system, helping deliver cooler airflow while keeping the main water tank separate.

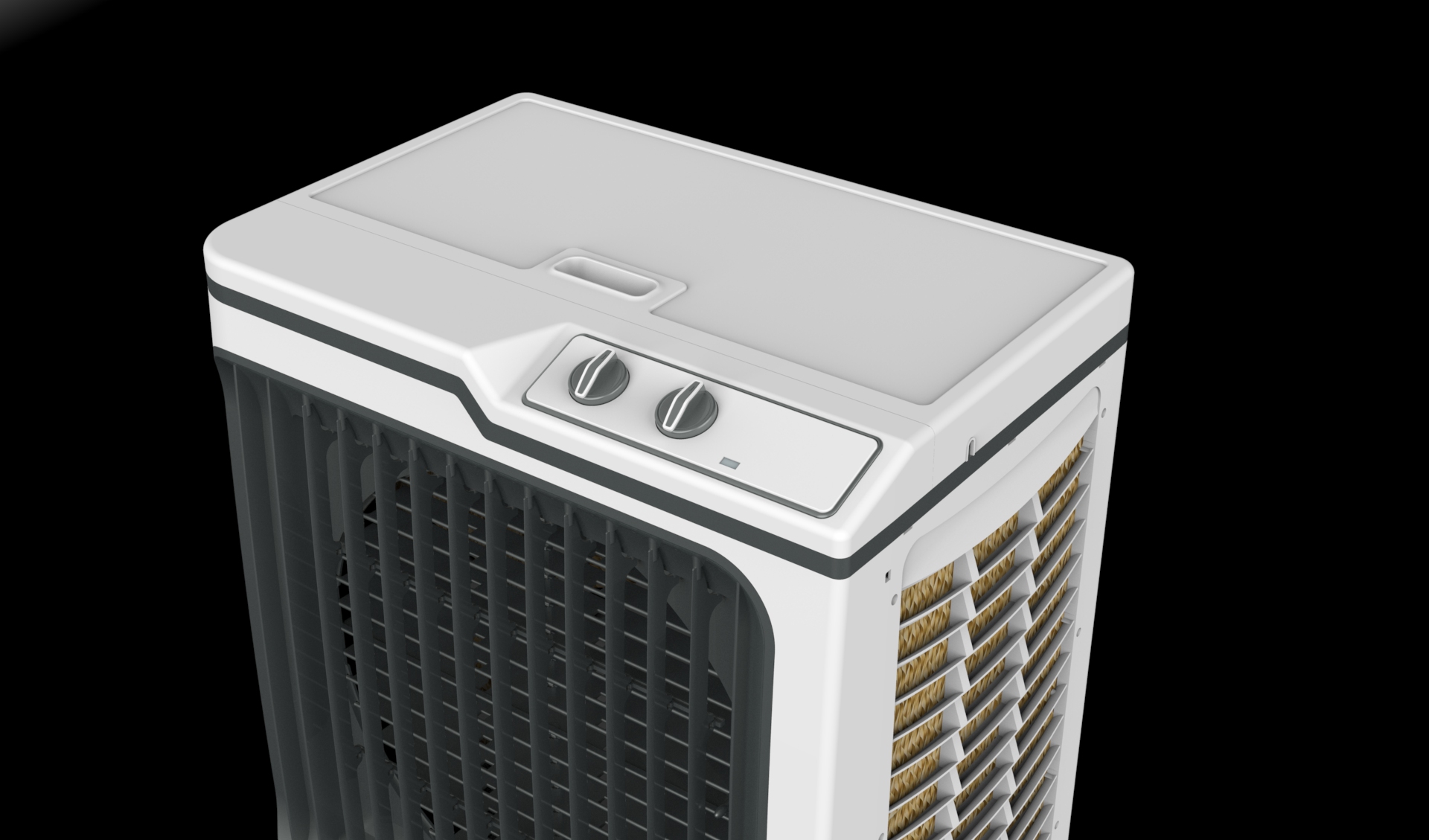

The upper chamber is easily accessible through a large top-opening lid, making it simple to add ice without disturbing the primary water reservoir. Beyond its functional purpose, the chamber creates a premium two-level cabinet design that gives the cooler a distinctive appearance and stronger visual identity.

The entire product was engineered using Design for Manufacturing (DFM) principles, ensuring practical plastic injection moulding, efficient assembly, structural strength, and production-ready geometry for large-scale manufacturing.
