Wave Series Water Heater Design

The engineering behind it.

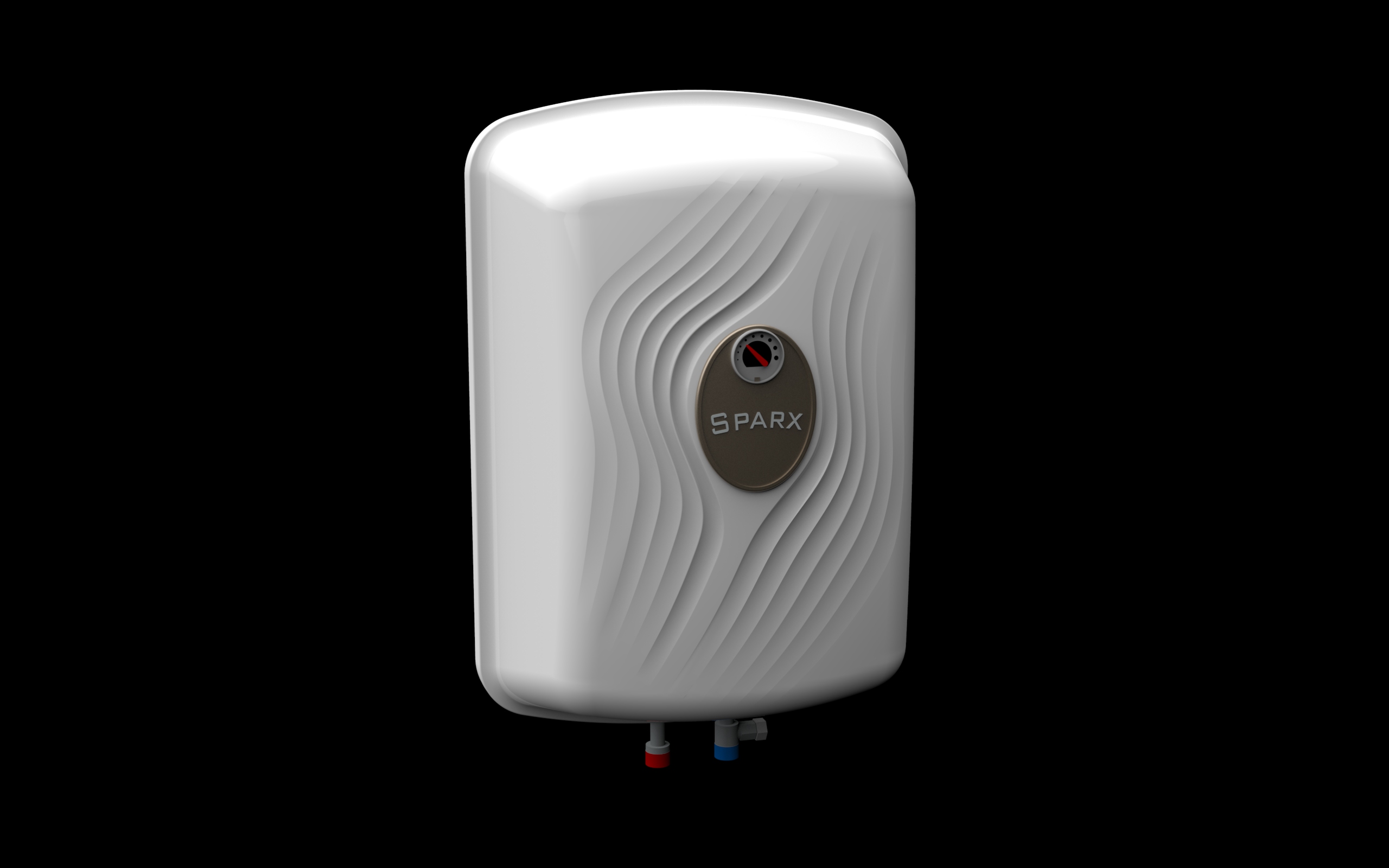

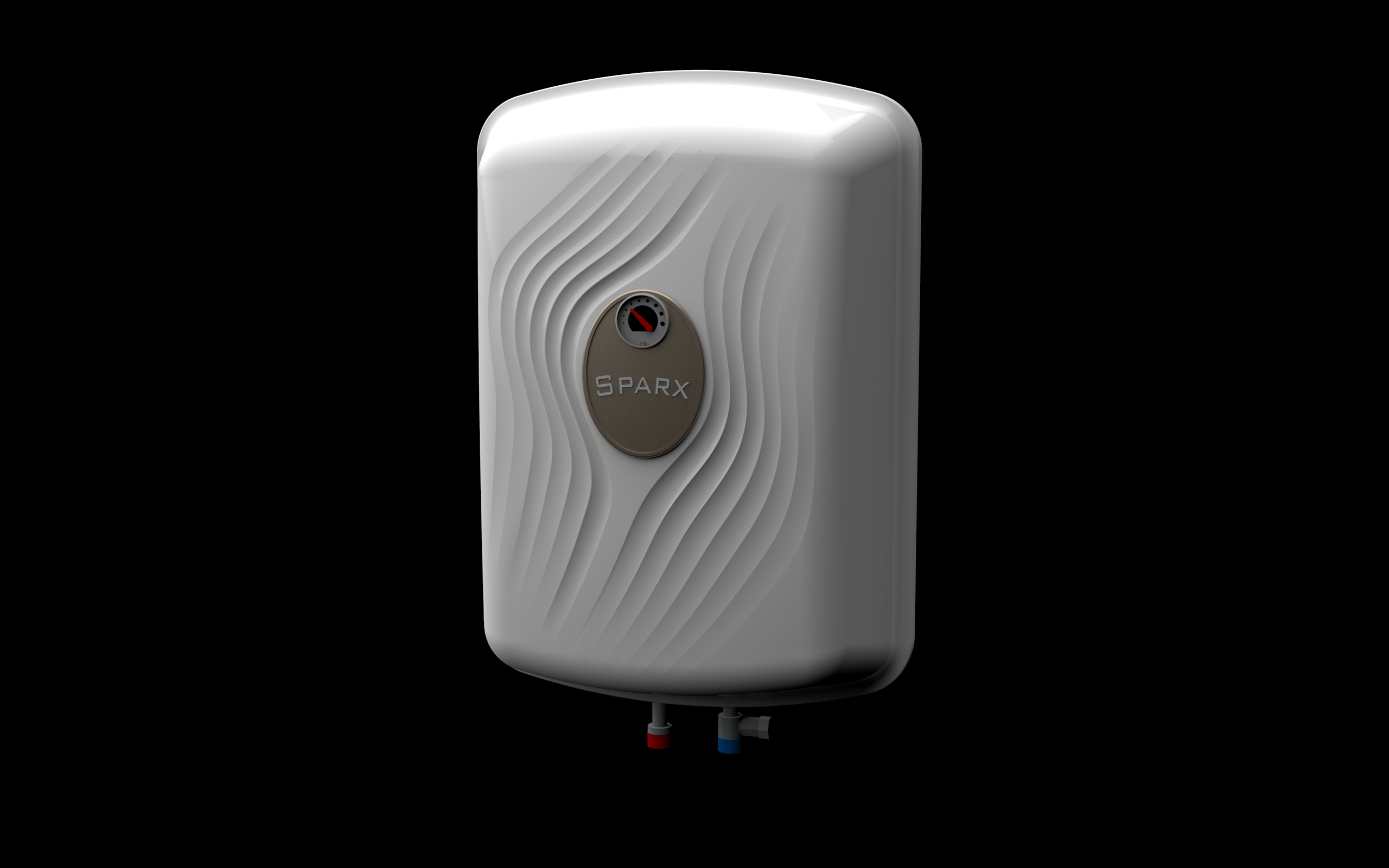

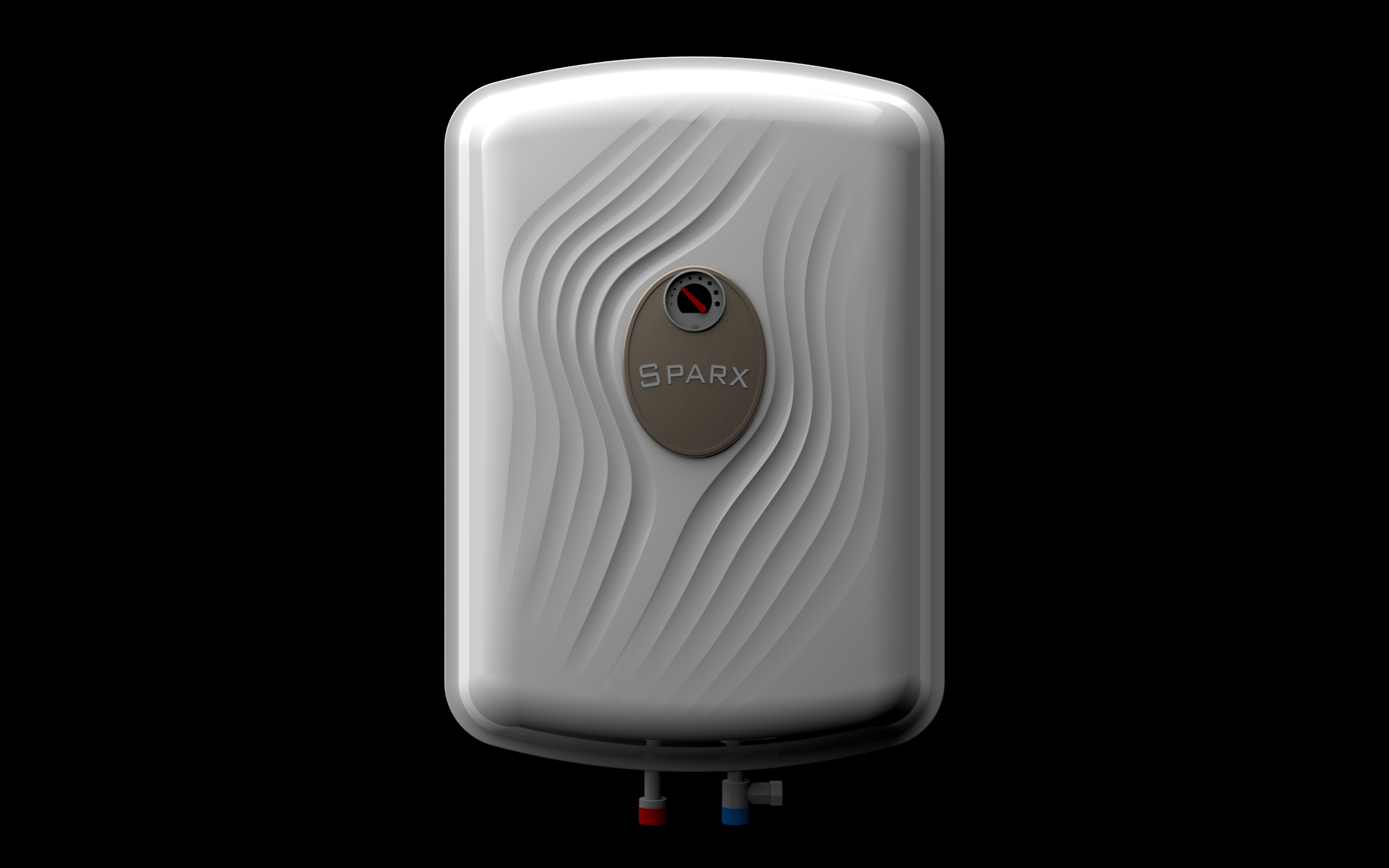

This storage water heater was developed as a complete consumer appliance engineering project focused on combining premium industrial design with manufacturing efficiency. The objective was to create a modern water heater that would stand out in the market through distinctive styling while remaining practical for large-scale production. Particular attention was given to the flowing front surface pattern, refined proportions, and clean visual language to create a premium appearance that increases perceived product value.

The engineering process involved optimizing the enclosure, control interface, indicator placement, plumbing connections, and service access before finalizing the production design. Every external feature was carefully positioned to improve usability while maintaining a balanced and uncluttered appearance. Surface transitions, edge radii, and pattern geometry were refined to ensure excellent mouldability, consistent part quality, and an attractive finished product.

The enclosure was engineered using Design for Manufacturing (DFM) principles for high-volume plastic injection moulding. Wall thickness, draft angles, rib placement, structural reinforcement, and parting-line strategy were optimized to reduce manufacturing complexity while maintaining structural integrity and dimensional accuracy. The final deliverables included manufacturing-ready CAD models, injection mould engineering, STEP files, renderings, and complete engineering documentation, enabling a seamless transition from concept development to commercial production.
