Transparent Cabinet RO Water Purifier Design
♻
Premium Transparent Cabinet Design

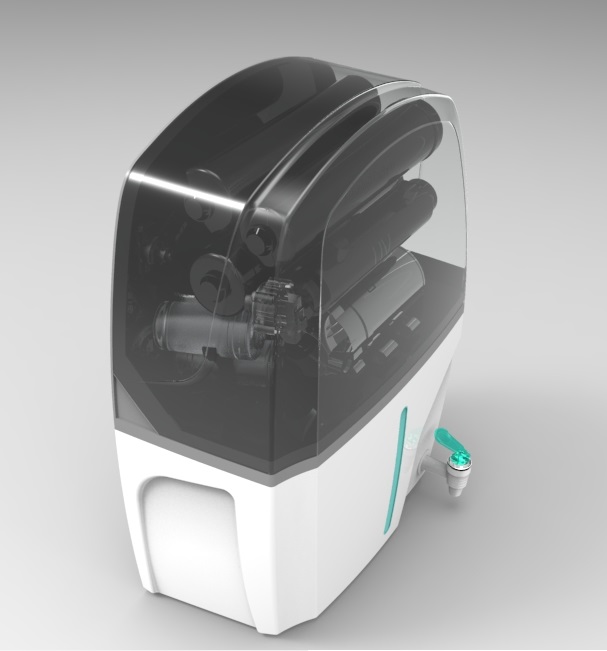

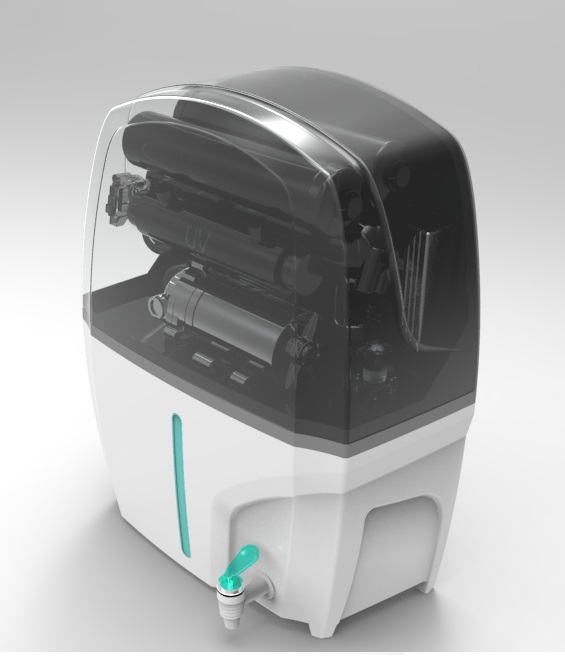

The purifier features a full smoked transparent upper cabinet that exposes the complete filtration system while maintaining a premium consumer appearance. Instead of concealing the engineering, the enclosure transforms the internal components into a key visual design feature, creating greater customer confidence while delivering a modern and distinctive product identity suitable for residential and commercial applications.
⏱
Optimized Internal Component Packaging
The internal architecture has been carefully engineered to accommodate RO membranes, pre-filters, UV chamber, booster pump, tubing, valves, fittings, and supporting hardware within a compact enclosure. Component positioning minimizes unused space, improves manufacturing efficiency, simplifies plumbing routes, and provides practical service access during maintenance without affecting the external appearance.
◎
Manufacturing-Ready Plastic Enclosure
The enclosure has been developed according to Design for Manufacturing (DFM) principles suitable for injection moulded plastic production. Wall thickness consistency, mould split-line planning, structural reinforcement, mounting features, and production-friendly geometry help improve tooling efficiency, manufacturing repeatability, dimensional accuracy, and long-term product durability.
◆
Consumer-Oriented Industrial Design
The purifier combines clean geometric styling with functional usability to create an appliance suitable for modern homes and commercial environments. The transparent cabinet enhances visual appeal while communicating the advanced filtration technology inside, allowing the product to stand out without relying on unnecessary styling elements.
◆
Complete Consumer Appliance Engineering
The project demonstrates a complete appliance development workflow that integrates industrial design, mechanical engineering, internal packaging, manufacturability, and production readiness. Both the external enclosure and internal filtration system were developed together to create a balanced product that is visually appealing, engineering-driven, and suitable for large-scale manufacturing.
