RenderRO Water Purifiers

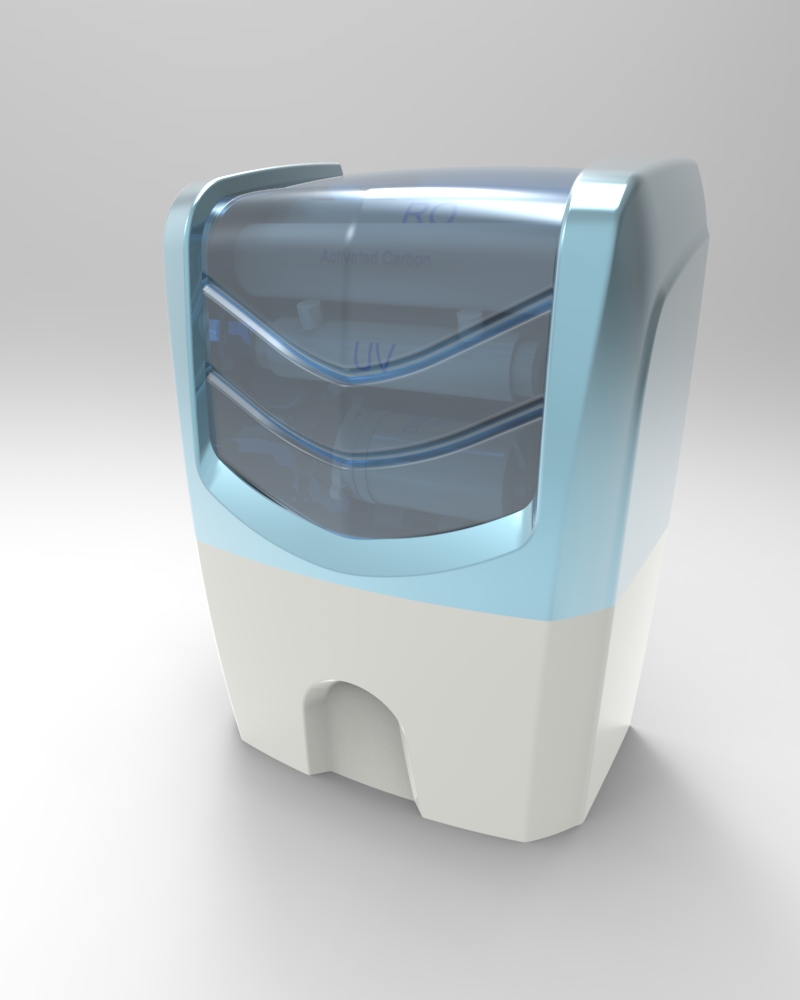

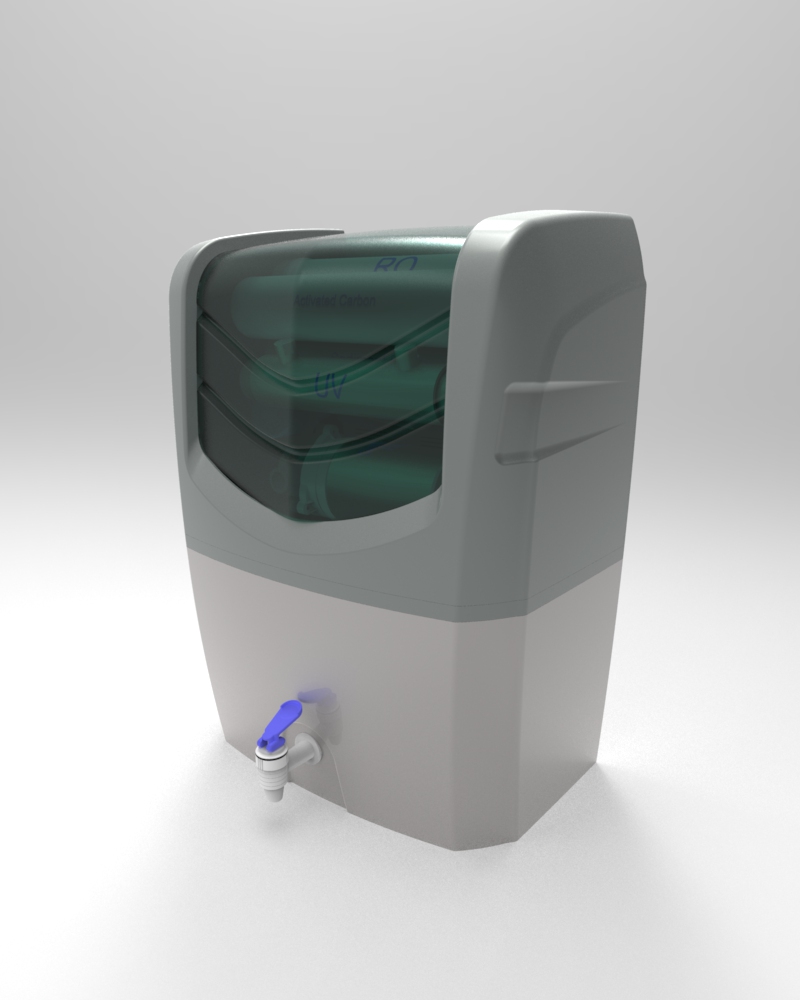

Transparent Front RO Water Purifier Design
♻
Transparent Product Architecture
The purifier features a transparent front enclosure that visually exposes the internal filtration stages without compromising the clean external appearance. This design improves product presentation by allowing customers to view the functional components while maintaining a premium consumer appliance aesthetic. The transparent cover is integrated into the enclosure as part of the overall industrial design rather than serving as a decorative element, creating a product that communicates engineering quality and technical sophistication.
⏱
Optimized Internal Filter Layout
The internal filtration cartridges, RO membrane, UV chamber, activated carbon filter, tubing, fittings, and supporting hardware have been carefully arranged within the enclosure to maximize available space while maintaining logical flow paths and service accessibility. The component layout supports efficient assembly, organized plumbing, and simplified maintenance, making the design suitable for practical manufacturing and long-term product reliability.
◎
Injection Moulding Ready Enclosure
The enclosure has been engineered according to Design for Manufacturing (DFM) principles suitable for high-volume injection moulding. Wall thickness transitions, split-line planning, structural reinforcement, mounting provisions, and manufacturable geometry were considered throughout the development process to improve tooling efficiency, dimensional stability, and production consistency while minimizing manufacturing complexity.
◆
User-Centric Industrial Design
The purifier combines modern styling with practical usability through smooth exterior surfaces, balanced proportions, intuitive water dispensing, and a clean front interface. The transparent viewing area enhances user confidence by visually communicating the filtration system, while the enclosure maintains an elegant appearance suitable for residential kitchens and commercial installations.
◆
Complete Manufacturing-Oriented Product Development
This project represents a complete consumer appliance development workflow encompassing industrial design, mechanical engineering, internal packaging, enclosure development, manufacturability, and production readiness. The final concept demonstrates how functional engineering and modern product styling can be integrated into a commercially manufacturable RO water purifier platform suitable for large-scale production.
